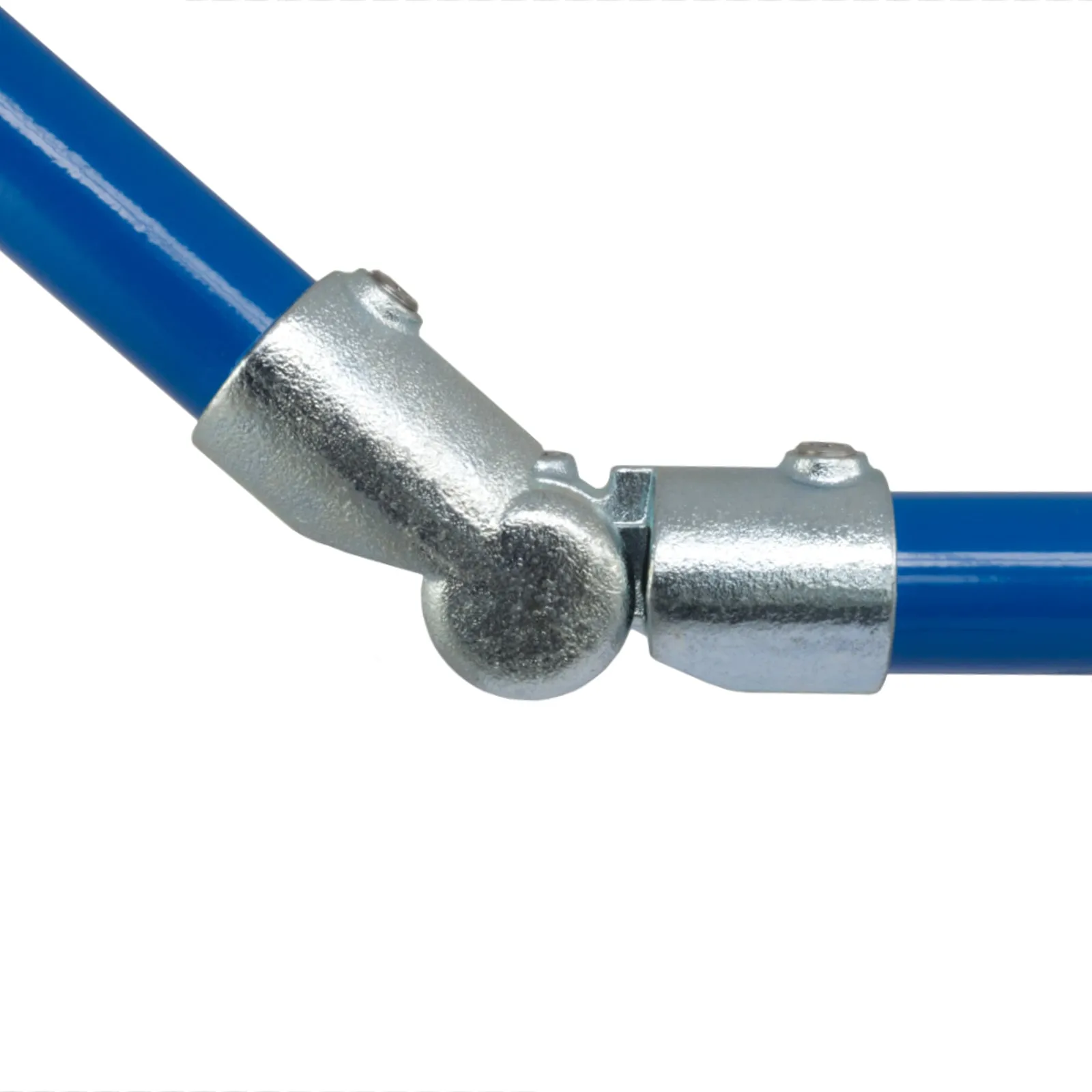

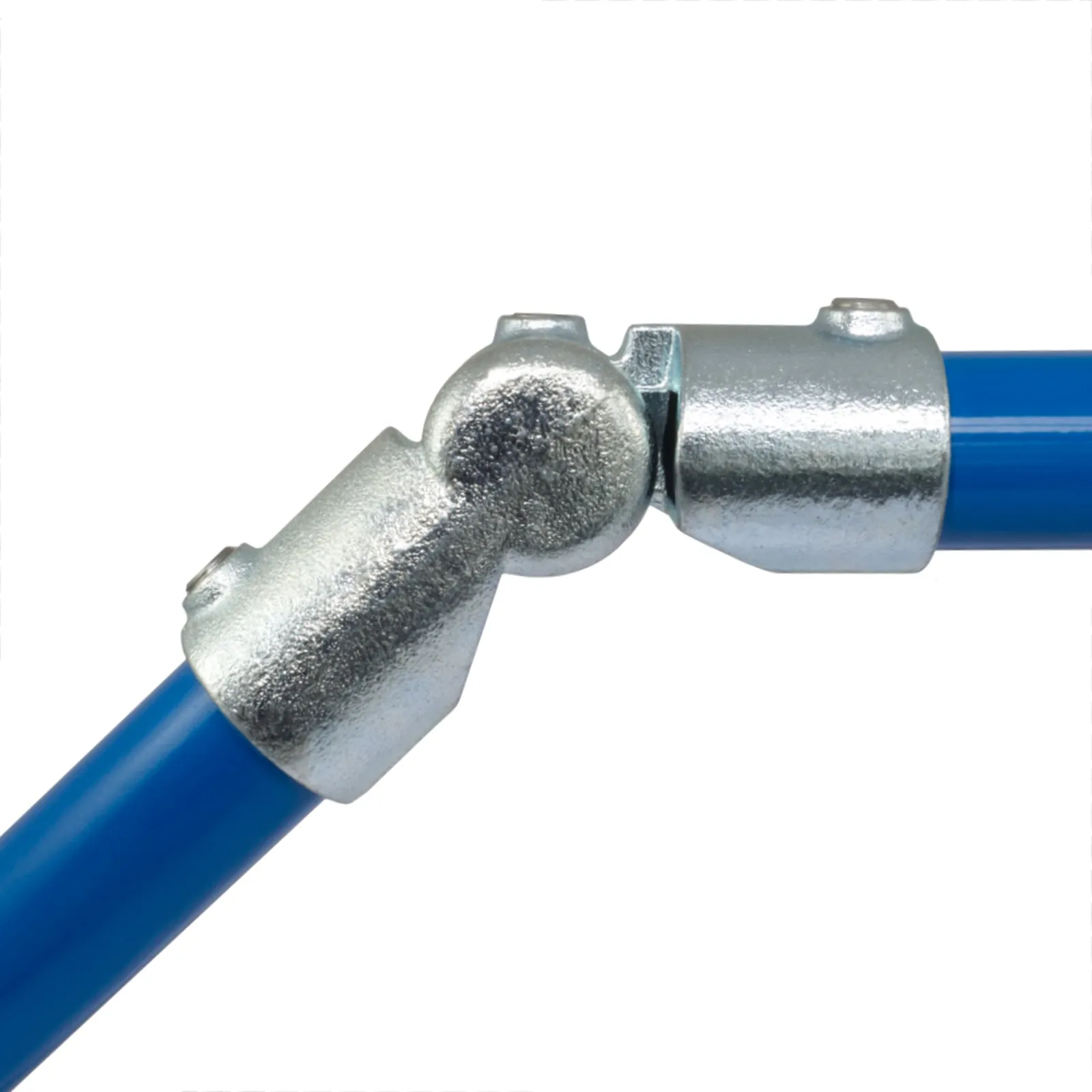

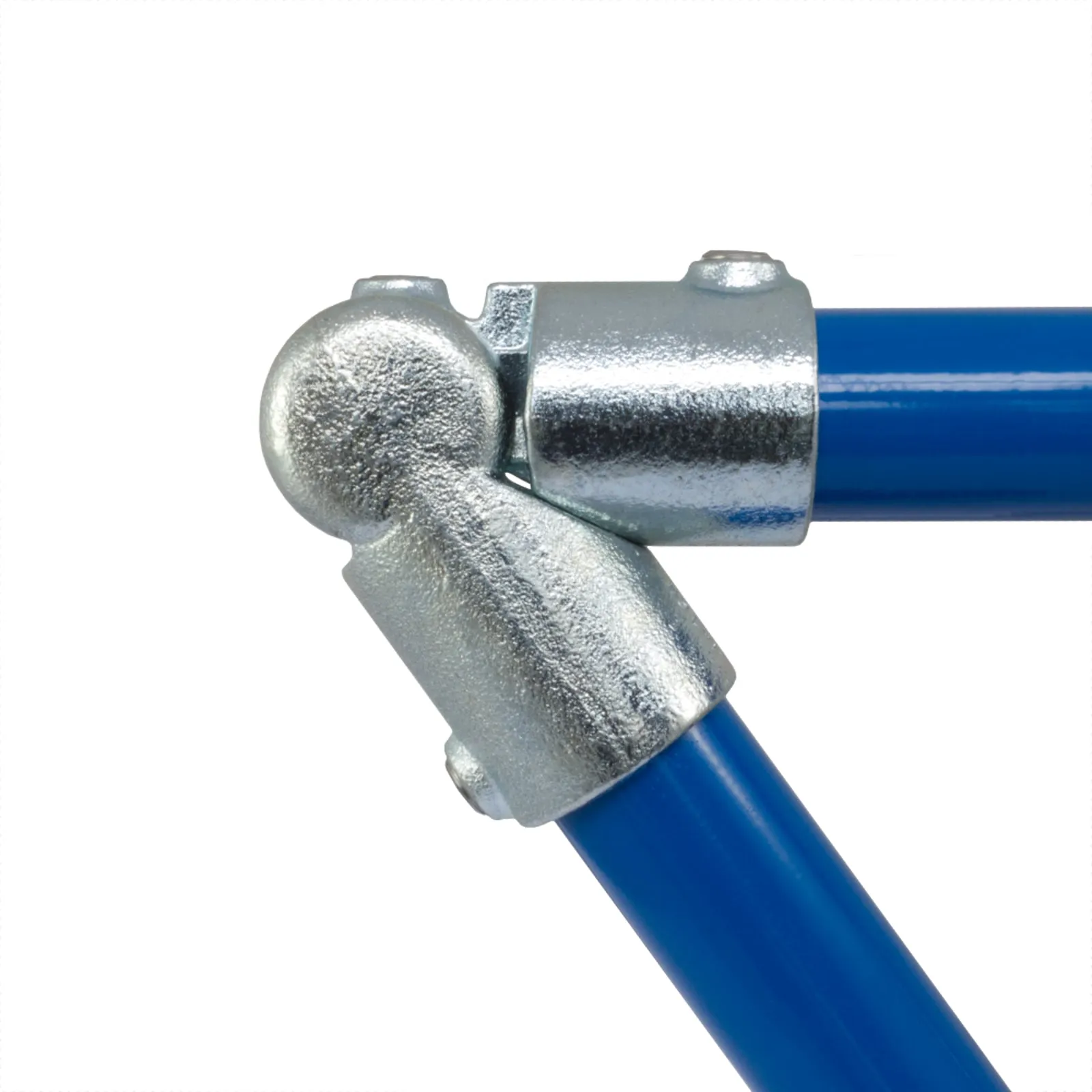

Interclamp Adjustable Knuckle (Code 166)

The Adjustable Knuckle fitting has a range of 0 to 120 degrees. An adaptable fitting that is frequently utilised to connect a horizontal rail to a sloping section. After achieving the desired angle, the knuckle is fastened in place using a standard setscrew.

Qty: 1
Finish: Galvanised
Brand: Interclamp®
Interclamp code: 166

Sizes:
• AA21 | Code: 166-AA21 | Weight: 0.28kg |  to purchase
• B34 | For 34mm Galvanised Pipe | 'a' 78mm | Weight: 0.87kg
• C42 | For 42mm Galvanised Pipe | 'a' 88mm | Weight: 1.28kg
• D48 | For 48mm Galvanised Pipe | 'a' 93mm | Weight: 1.45kg
• E60 | For 60mm Galvanised Pipe | 'a' 110mm | Weight: 2.34kg

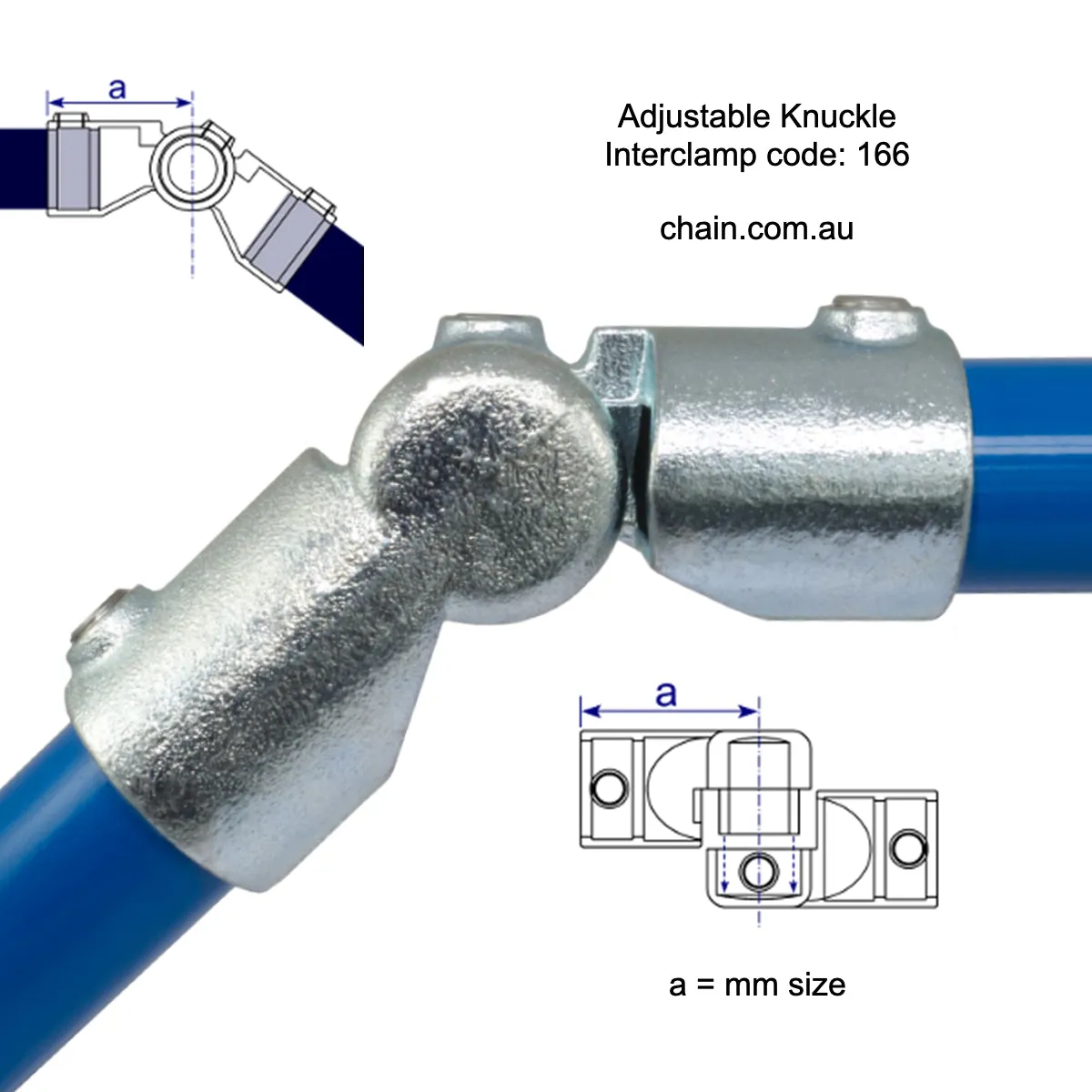

'a'- refer to diagram

Chain.com.au is an official Interclamp® distributor. Shop rail and pipe fittings by Interclamp online now.

We are in the process of adding more Interclamp® products to our website. In the meantime, you can browse the  and  to place your order.

Delivery or 'click and collect' is available from East Keilor, Melbourne (Victoria, Australia) - select option at checkout.

If you need product advice, have any questions or to bulk buy,  or call us on 03 9331 5544.
