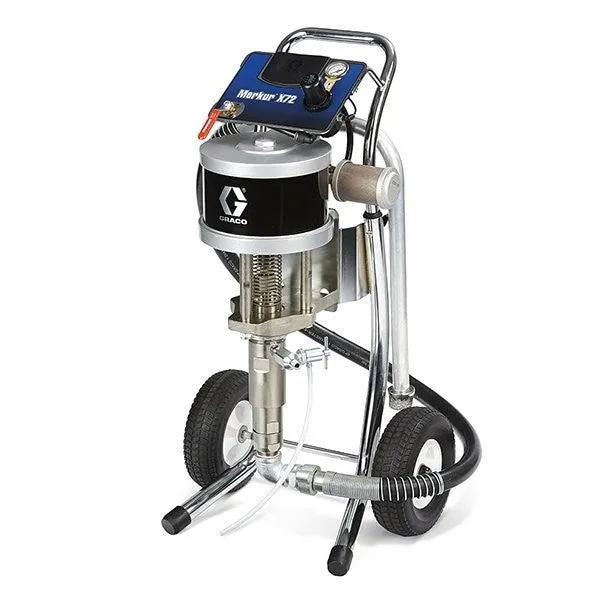

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.
FEATURES
- Compact – fits into tight areas
- Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
- Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
- Easy to use, easy to clean
- Stainless steel option allows for waterborne coatings
- The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.
SPECIFICATIONS
| Compatible Material | Protective Coating |
|---|---|
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Hose Inlet Diameter (in) | 3/8 |
| Inlet Paint Strainer | 8 Mesh, 16 Mesh |
| Lower Configuration | Carbon Steel;1-1/4 in. Inlet; Drain Valve |
| Maximum Air Consumption (SCFM) | 70 |
| Maximum Sound Pressure Level (dB(A)) | 68.9 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Working Pressure (MPa) | 50 |
| Maximum Working Pressure (psi) | 7250 |
| Model | Merkur |
| Motor Type | Pneumatic Motor |
| Mount Type | Cart Mount |
| Number of Guns | 0 |
| Package Options | Bare (No Hose/Gun) |
| Power Source | Pneumatic |
| Pressure Control Type | Air Regulator |
| Pump Pressure Ratio | 72:1 |
| Pump Rod Type | Carbon Steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Displacement Pump, Pneumatic Piston Pump |
| Series | X48/X72 |
| Type | Airless Sprayer |
| Weight (lb) | 99 |
